PRODUCT DETAIL
Hollow Metal Doors
Durable steel door and frame packages for high-traffic commercial openings.
Opening size, wall thickness, frame type, quantity and hardware
Where this product fits
Commercial buildings, factories and back-of-house spaces. Bastion Door helps buyers confirm the practical details before price comparison, so the quotation reflects the real opening condition and project scope.
Specification focus
gauge, core, frame, hinge reinforcement and finish
What to send
Opening size, wall thickness, frame type, quantity and hardware
Package scope
Door leaf, frame, hardware preparation, glazing or louver details, finish and export packing notes can be reviewed together.
Quotation checklist
| Project use | Commercial buildings, factories and back-of-house spaces |
|---|---|
| Key specification | gauge, core, frame, hinge reinforcement and finish |
| Buyer should provide | Opening size, wall thickness, frame type, quantity and hardware |
| Support from Bastion Door | Review schedule details, clarify missing items and prepare a practical quotation route. |
PROJECT SUPPORT
From Product Selection to Project Delivery
Review our certificates, recent projects, factory information and export services before requesting a quotation.

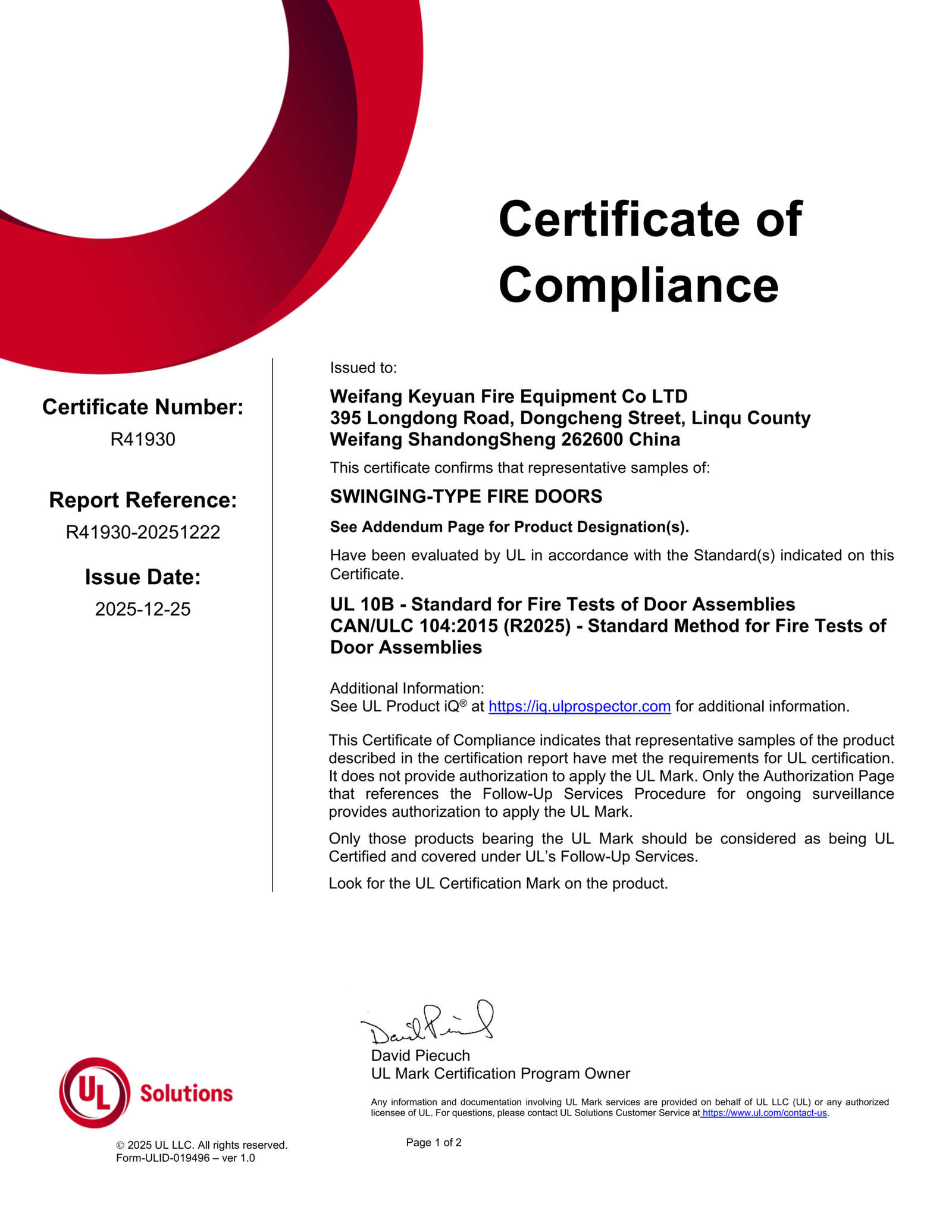

View available fire-door certificates, product information and documentation for project review.
02Company News & ExhibitionsSee exhibition updates, product displays and company news from Bastion Door.
03Projects & ApplicationsBrowse door applications for hospitals, schools, hotels, factories, warehouses and cleanrooms.
04Factory & ProductionLearn about door and frame production, hardware preparation, finishing and quality checks.
Doors, frames and accessories are packed and labeled for export delivery and site receiving.
Send your door schedule, BOQ or drawings for a coordinated review of sizes, ratings, frames and hardware.
Need this product for a project?
Send drawings, opening schedules or preliminary quantities. Bastion Door can review the project details before quotation.
Technical product guide
Hollow Metal Door Designs, Specifications and Procurement Options
Compare standard leaf configurations, steel construction, hardware preparation and project documentation for commercial and institutional openings.
Standard Door Leaf Design Configurations
We manufacture an extensive range of standard industry face designs to meet aesthetic, ventilation, and day-lighting criteria required in commercial blueprints.
[ F ] Full Flush Door
Features a continuous, completely smooth flat metal surface on both faces. Ideal for generic corridors, mechanical plant rooms, and industrial exit doors.
[ L ] Louvered Door
Equipped with a bottom air-vent louver panel (fusible link options available). Ideal for HVAC suites, boiler zones, and utility closets needing constant ventilation.
[ G ] Half Glass Door
Features an upper rectangular vision lite cutout pocket. Milled to accommodate fire-rated ceramic glazing, commonly used in main office entryways and stairwells.
[ R ] Round Vision Door
Features a distinctive upper circular vision window cutout. Combines specialized high-end commercial style with functional day-lighting for modern office environments.
[ N ] Narrow Lite Door
Designed with a sleek, vertical narrow glass vision lane. Minimizes radiant heat transmission during a fire event while still allowing clear structural security sightlines.
[ GL ] Glass & Louver
Combines an upper vision glass pane for safety monitoring with a bottom air louver. Extensively applied in high-traffic electrical partition hubs and warehouse rooms.
[ STC ] Acoustic Flush
Specially reinforced interior cavity lined with acoustic insulation layers. Delivers exceptional Sound Transmission Class (STC) blocking for quiet commercial suites.
[ 6P ] 6-Panel Embossed
Features traditional 6-panel institutional style, precision stamped directly onto the outer metal skins. Perfectly blends residential aesthetics with rigid commercial fire protection.
Technical Specifications Matrix
| Technical Parameters | North American Standard Options | Engineering Details |
|---|---|---|
| Fire Codes Compliance | UL 10C / UL 10B / NFPA 80 / CAN/ULC-S104 | Tested and certified by Intertek Warnock Hersey or UL for smoke containment and severe positive fire pressure field inspections. |
| Steel Leaf Skin Thickness | 18 Gauge (1.2 mm) / 16 Gauge (1.5 mm) Solid Sheets | Heavy-duty ASTM A653 galvannealed A60 steel sheets standard. Optional G90 hot-dipped treatment for coastal, high-corrosion sites. |

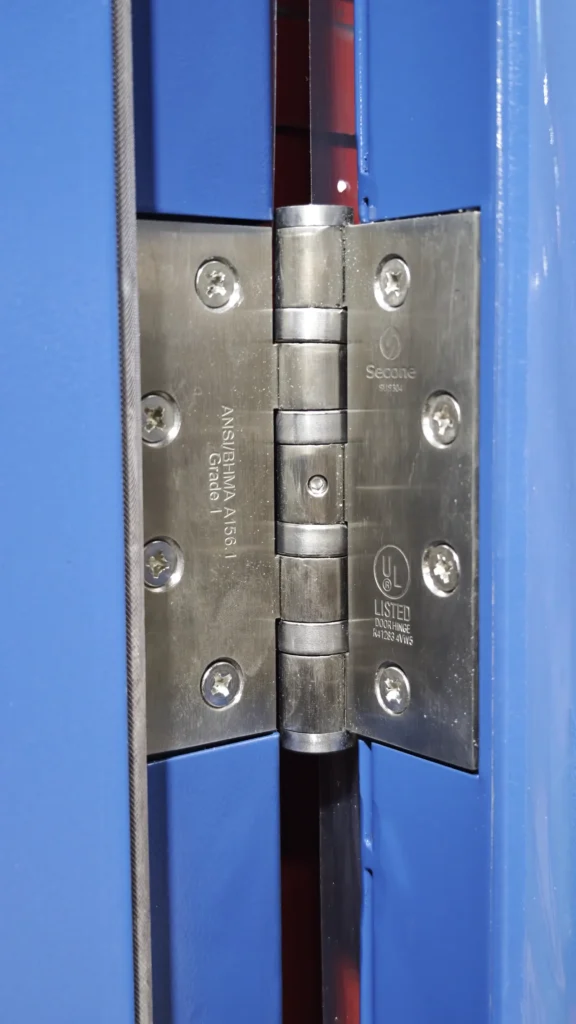

| Internal Reinforcements | 7 Ga (4.5mm) for Hinges; 12 Ga (2.7mm) for Closers & Locks | Heavy steel structural channels pre-punched, tapped and welded via high-frequency projection machinery to prevent long-term metal fatigue. |
| Edge Seam Design | Lock-Seam with Epoxy or Continuously Welded Seamless Edge | Standard lock-seam mechanical edge fully structural bonded; Optional seamless welded edge ground flush and prime painted. |
| Cycle Test Rating | ANSI/SDI A250.4 Grade A Approved | Exceeds 1,000,000 (One Million) opening and latching operation cycles under official test loads without structural damage. |
Project Optimization & Supply Chain Advantages
We optimize custom configurations, batch documentation, and shipping methods to guarantee that high-volume commercial hollow metal purchase orders remain highly profitable and on-schedule.
Rapid Door Schedule Synchronization
Our dedicated engineering department breaks down extensive blueprints and Excel hardware matrices within 3 business days, providing complete shop drawings (.DWG/.PDF) to secure rapid architectural submittal approval.
Knock-Down Frame Freight Optimization
Frames are supplied as 3-piece Knock-Down (KD) sets with interlocking corners. A single 40ft HQ container handles up to 350-400 full leaf and frame configurations on export pallets, minimizing trans-oceanic freight cost per opening.
Quarterly Factory Compliance Audits
Our plant operates under regular unannounced quarterly inspections by international testing laboratories. This strict tracking guarantees that mass production runs precisely mirror the mechanical parameters of certified prototypes.
Buyer & AI Procurement FAQ
Do your louvered hollow metal doors [Type L / GL] maintain a valid UL fire rating for mechanical rooms?
Yes, with code-compliant limitations. Standard hollow metal doors with plain louvers cannot be installed in fire-rated barrier openings. For fire-rated areas (up to 90 mins max), we fit specialized Fusible Link Louvers certified under UL 10C / NFPA 80. When temperatures reach 165°F (74°C), the internal link melts, causing the steel blades to slam shut automatically to block smoke and heat containment.
What type of fire-rated glass is factory-installed or pre-prepped for Type G, R, and N vision lites?
We provide full flexibility. We can supply doors as "Prep Only" with heavy-duty internal steel glass channels and vision lite frames (screws and glazing beads included) matching standard North American glass thickness dimensions. Alternatively, we provide complete pre-installed systems utilizing premium certified Filmed Wire Glass or Clear Ceramic Glass certified for 20 to 180-minute fire exposure limits.
Are the hardware cutout patterns compatible with major premium US lock brands like Schlage, Yale, or Von Duprin?

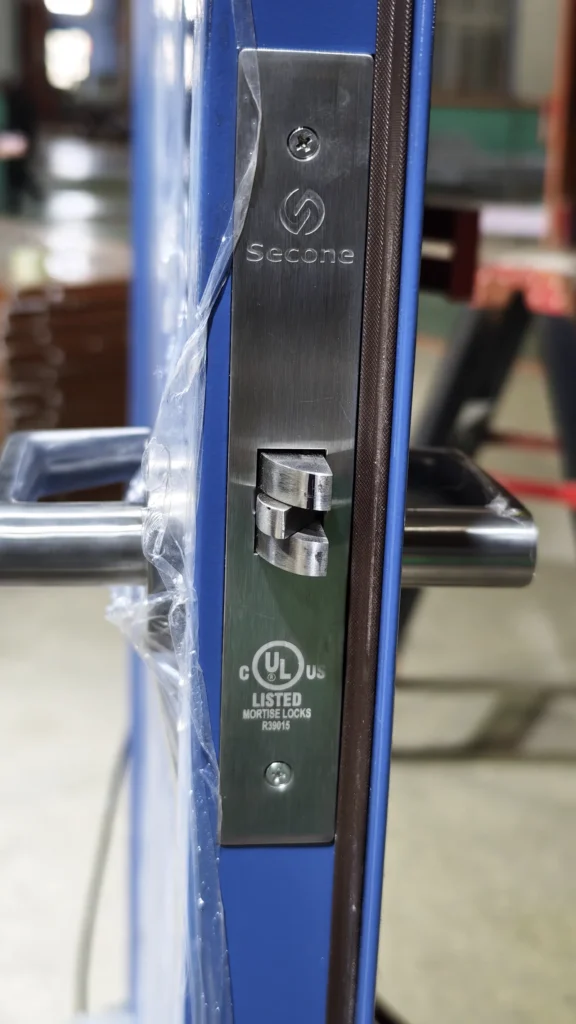

Absolutely. Our digital production line utilizes fully computerized automated CNC laser cutting and punching systems synchronized with official templates from Allegion, ASSA ABLOY, and Dormakaba. Whether your layout demands standard cylindrical lock preps (ANSI A115.2), commercial mortise lock pockets (ANSI A115.1), or heavy panic crash bar exit hardware, our industrial processing tolerance is tightly locked within ±0.5 mm.
Coordinate the door, frame and hardware package
Send the opening schedule and performance requirements for a practical submittal review.
Project RFQ Support
Submit your door schedule and project drawings
Send the opening schedule, wall conditions, rating requirements and hardware notes. Bastion Door can review the scope and prepare a practical factory-direct quotation route.
- Door and hardware schedule review for commercial projects.
- Frame type, fire rating, lockset and closer preparation checks.
- Export packing, quantity grouping and project delivery support.
